| Model | MEB |
|---|---|
| Working distance | 3000 mm |
| Working width | 76 150 310 460 610 mm |
| Housing material | aluminum |
| Inner bar matarial | PVC |
| Ionisation point | special alloy |
| Cable | metal shielded |
| Weight | 2,6 kg/m |
| Ambient temperature | 0 - 55° |
| Use circumstances | industrial |
| Protection classification | - |
| Operating voltage | 7 kV AC |
| Air consumption | on request |
| Pressure | Max. 10 bar |
| Airconnection | 1/4" BSP |
| Options | airfilter |
| Suitable power unit | A2A7S |
| Input voltage | - |
| Approval | UL |

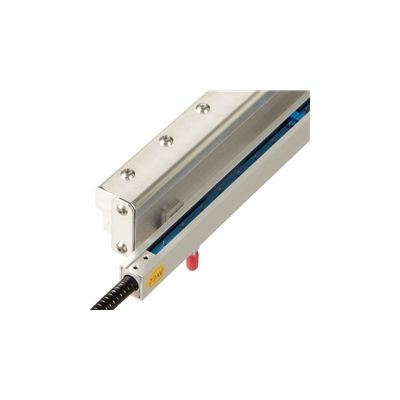

A type MEB shock-proof anti-static bar combined with an airknife come in standard lengths. The compressed air is blown across the high-voltage points over the entire width and amplified by the ambient air carried along. The air flow is saturated by the positive and negative ions produced by the anti-static bar. The air flow neutralises the static charge, enabling any contamination to be easily blown away.
